Size

16000*(2500-3000)*800 (mm)

Payload

40000KG-10000KG

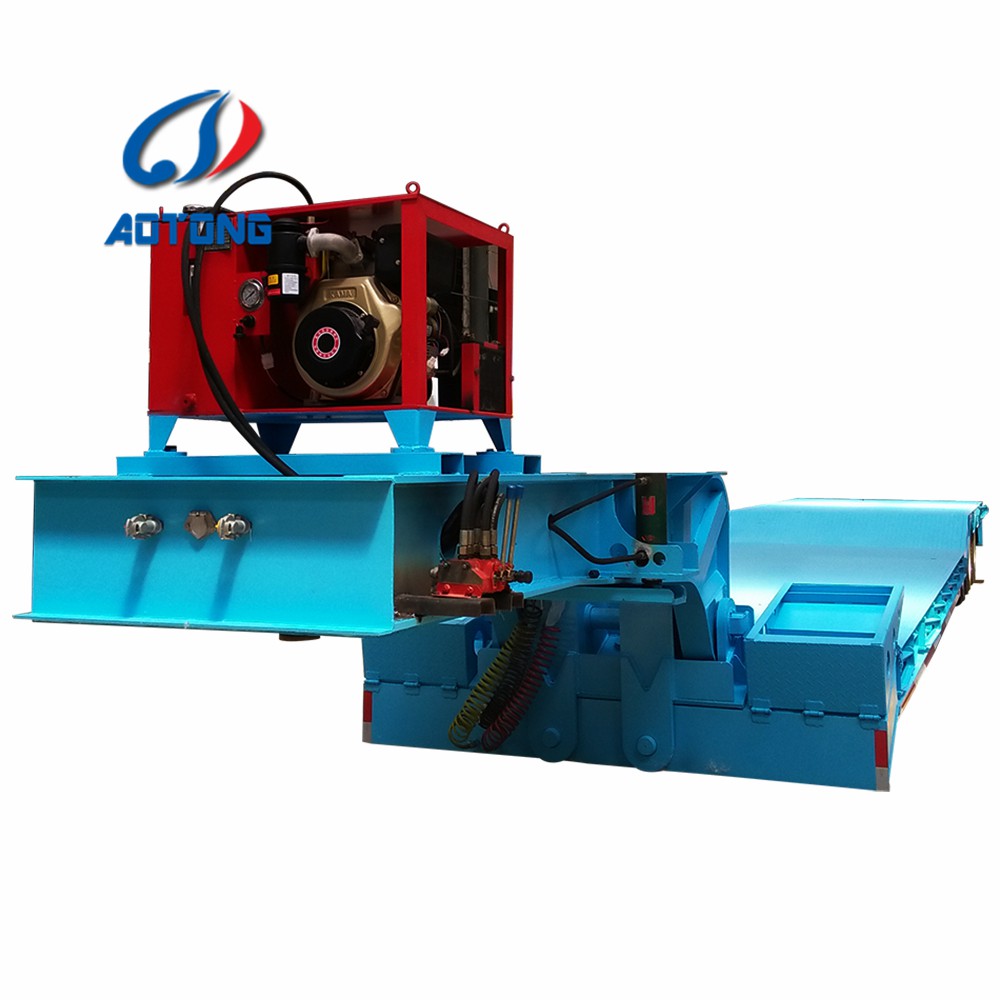

Power pack

Engine for hydraulic cylinders

Main beam

Heavy duty I beam.

Side beam

250mm I beam

Plate

4mm checked plate

Ladder

Small ladder frond loading

Axles

3 * 13ton capacity  (Brand optional)

Suspension

Mechanical suspension (Air suspension optional)

Leaf spring

10pcs

Tire

12R22.5  /  11.00R20  12pcs  (Other size optional)

Rim

9.00-22.5  /  11.00R20  12pcs   (Other size optional)

Kin pin

2’’/3.5’’ bolt type

Landing gear

28 Ton two speed

Braking system

Double air chamber ,brake valve,45L air tanks ;ABS optional

Electrical

LED light , 7 ways ,24V

Painting

Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
